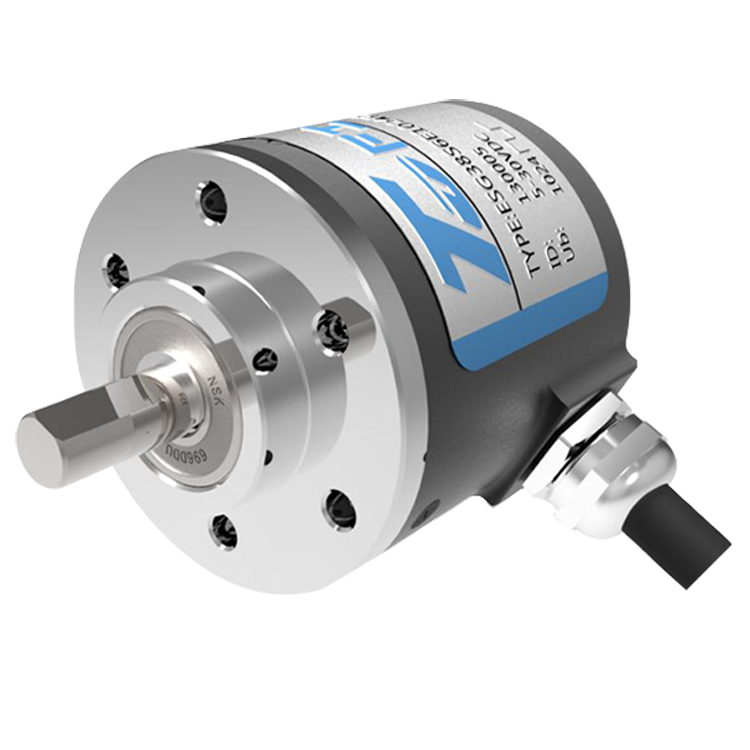

Absolute Encoder

Reliable and accurate position feedback without reference point, and the shaft is still rotating after power failure.

Absolute encoder to use precise optical technology and strong magnetic sensor technology to sensor location information
extremely rich products series; Single-turn and multi-turn technologies provide a variety of signal interfaces and shaft types
Positioning information when the power is maintained
No battery more than ring technology: optical mechanical gears without batteries
High shock resistance, anti jitter performance

Filter by attribute

Product Series	Housing size	Shaft diameter	Number of turn	Steps per turn	Interface
JSCS38S-Modbus-RTU Series	Φ38mm	Solid shaft Φ6mm	-	16384 /14bit	Modbus-RTU
JSCS38B-Modbus-RTU Series	Φ38mm	Blind hollow shaft Φ8mm	-	16384 /14bit	Modbus-RTU
JSCS38S-CANopen Series	Φ38mm	Solid shaft Φ6mm	-	16384 /14bit	CANopen
JSCS38B-CANopen series	Φ38mm	Blind hollow shaft Φ8mm	-	16384 /14bit	CANopen
