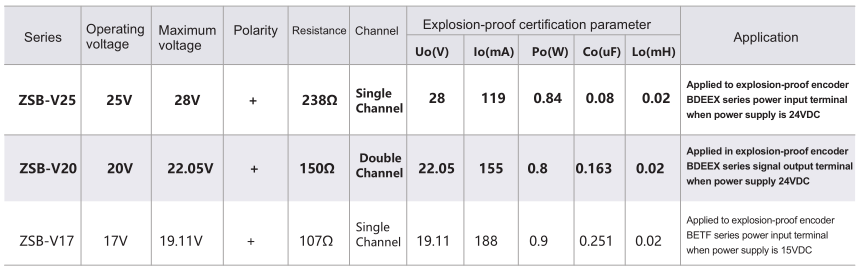

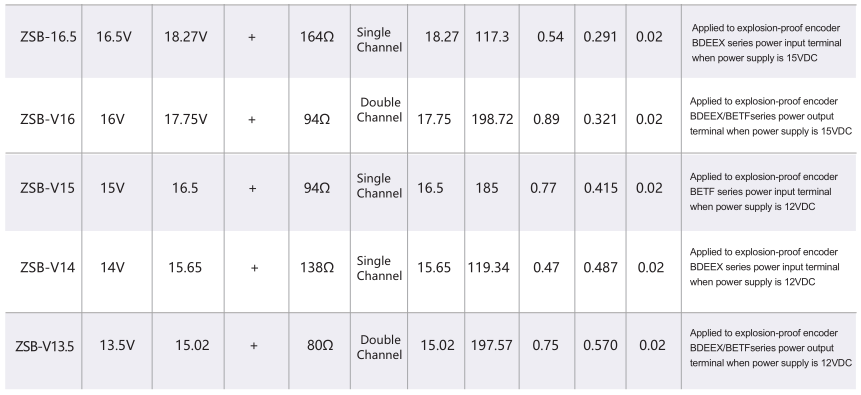

- ZSB-V Series
- Shunt-diode safety barrier
- Explosion proof mark [ Ex ia Ga]ⅡC
- Housing size：85.2*18.1*69mm
- Channel：Single、double
- Max. voltage at the non-intrinsic end of the safety barrier（Um） 250V

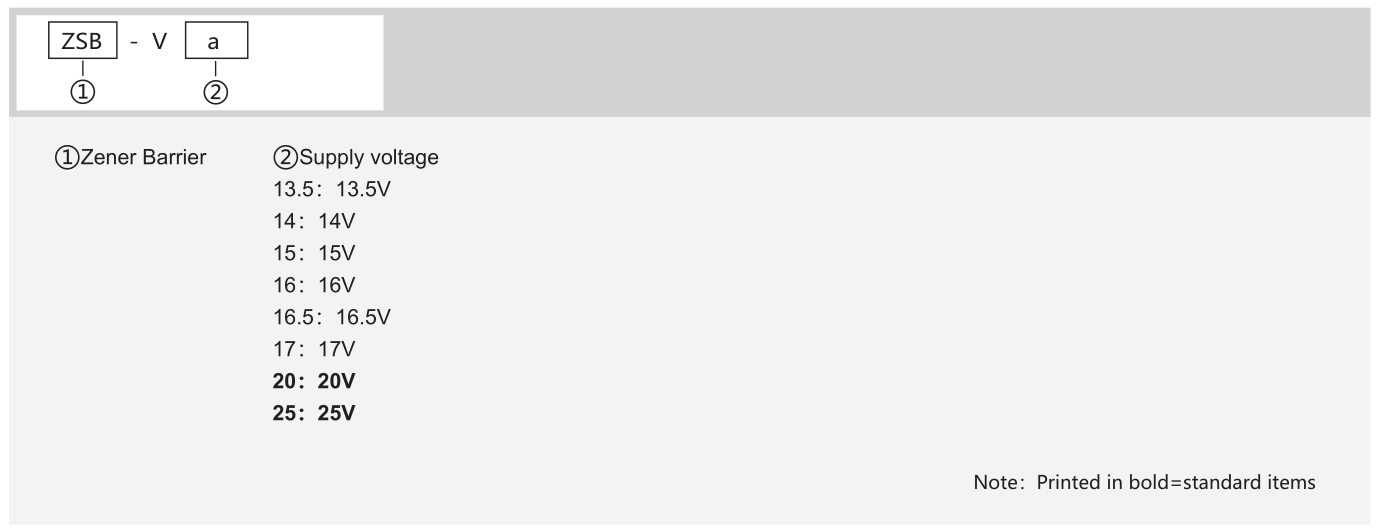

- Supply voltage 13.5V、14V、15V、16V、16.5V、17V、20V、25V
- Install 35mm DIN rail mountable
- Temperature range： -20℃…+60℃
- Protection ：IP20
