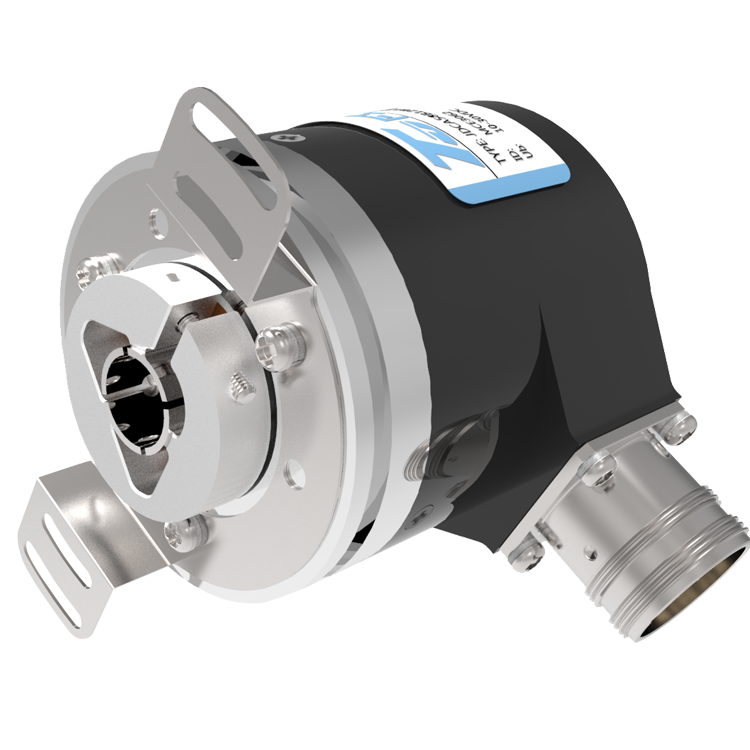

JDCA58B-CANopen Series

Shaft diameter Blind hollow shaft Φ10、Φ12、Φ14mm

MaterialAluminum alloy

Shell materialAluminum alloy

Shaft loadingMax. 40N Axial

Radial loadMax. 80N Axial

Rotatinal speedMax. 3000 min

Shock resistance 100g，3ms

Shock resistance10g，10...2000Hz

Protection grade IP65/IP67

Working temperature-40℃...+85℃

Storage temperature -40℃...+85℃

Weight ≈450g

Wiring method Radial direction

Interface CANopen

Transmission rateMax 1MBit/s

Code Binary

linearity±0.5LSB

The node addressProgrammable setting

Counter directionProgrammable setting

StandardDSP -406 V3.2DS 301 V4.02

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection, Reverse polarity protection, ESD protection
