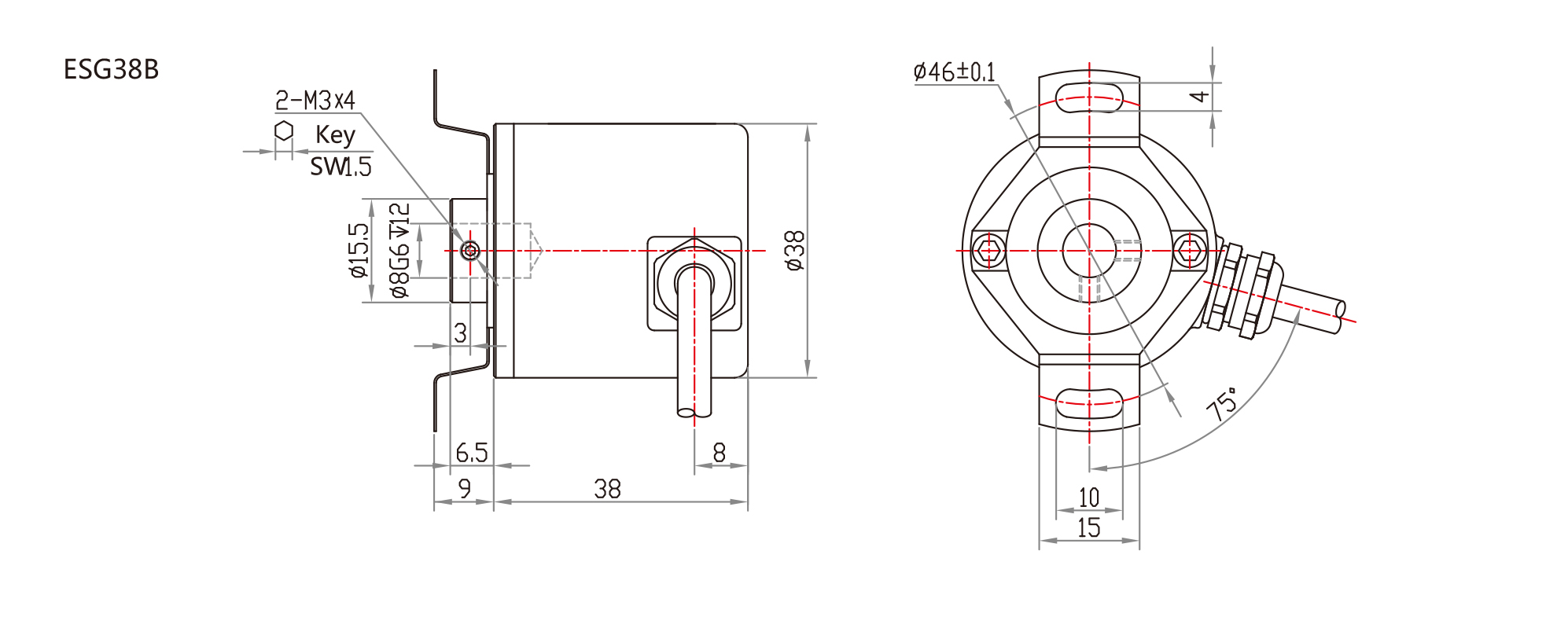

ESG38B

Shaft diameter Blind hollow shaft Φ5、Φ6、Φ8mm

Sensing methodOptical

Max. resolution2500PPR

Supply voltage 5VDC,5-30VDC,9-26VDC

ProtectionIP54/IP65

Speed6000RPM

Shaft loadingMax. 25N Axial；Max.50N Radial

Shock resistance50g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.005Nm

MaterialsCopper
Flange ：Aluminum alloy
Housing ：Tensile iron shell +Black painted

Working temperature-20~+70℃

Storage temperature-30~+85℃

Weight≈120g

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）

Pulse rateMax.2500 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max.±80mA

Pulse frequency Max. 300KHz

Signal level high Min.Ub-1.5V
min.Ub-2.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax.1μs

Short circuit proof outputs Yes
