Heavy-duty encoder

EHK68S series

  • EHK68S series
  • Sensing method optical
  • Housing size Φ68mm
  • Solid shaft Φ6、Φ8、Φ10mm
  • Max. resolution 2500PPR
  • Supply voltage 5VDC,5-30VDC,9-26VDC
  • Protection IP66

Technical parameter

Technical – Machine characteristics

Shaft diameterSolid shaft Φ6、Φ8、Φ10mm

ProtectionIP66

Speed3000RPM

Shaft loadingMax. 70 N Axial;max. 140 N Radial

Shock resistance100g,6ms

Vibration resistance10g,10...2000HZ

Starting torque<0.1Nm

MaterialsMaterials Flange :Stainless steel
Solid shaft :Aluminium alloy
Housing:Aluminium alloy

Working temperature-40℃…+85℃

Storage temperature-40℃…+85℃

WeightApprox. 0.4kg(Cable 2m)

Technical – Electrical characteristics

Output circuitPush-Pull

Pulse rateMax. 2048P/R

Supply voltage5-30V

Power consumption(no load)Max. 80 mA

Permissible load/channel Max. ± 30mA

Pulse frequency Max. 100 KHz

Signal level highMin. Ub-2.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time Tf Max. 1 μs

Short circuit proof outputsYes

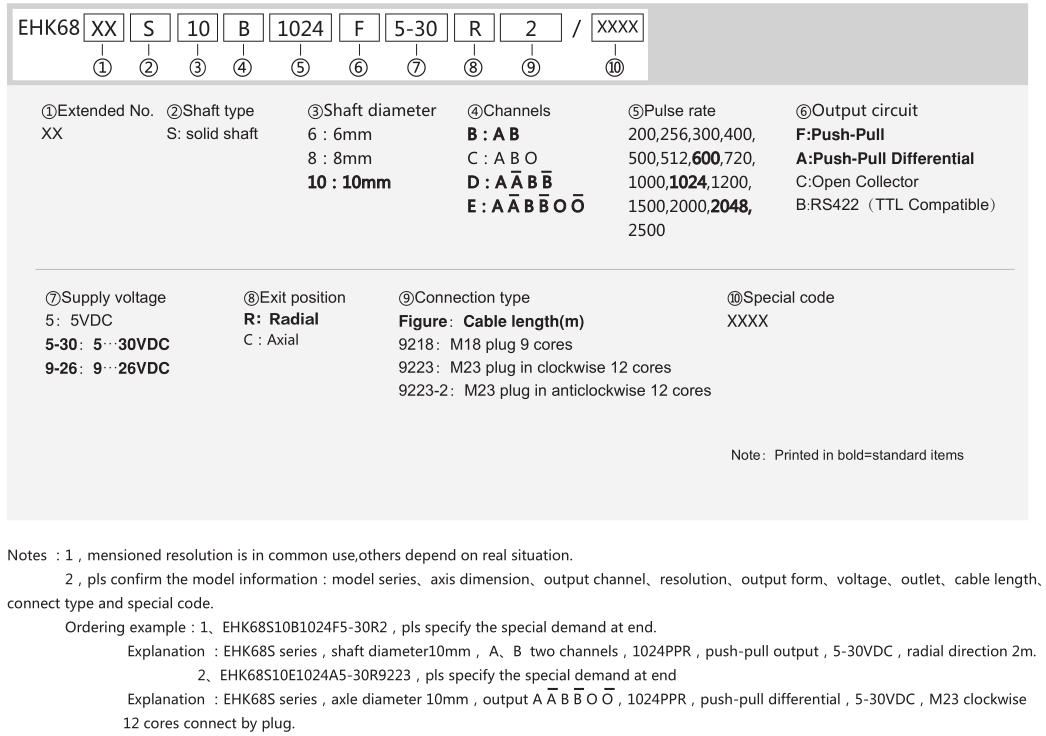

Ordering information

Ordering example:EHK68S10B1024F5-30R2

Terminal assignment

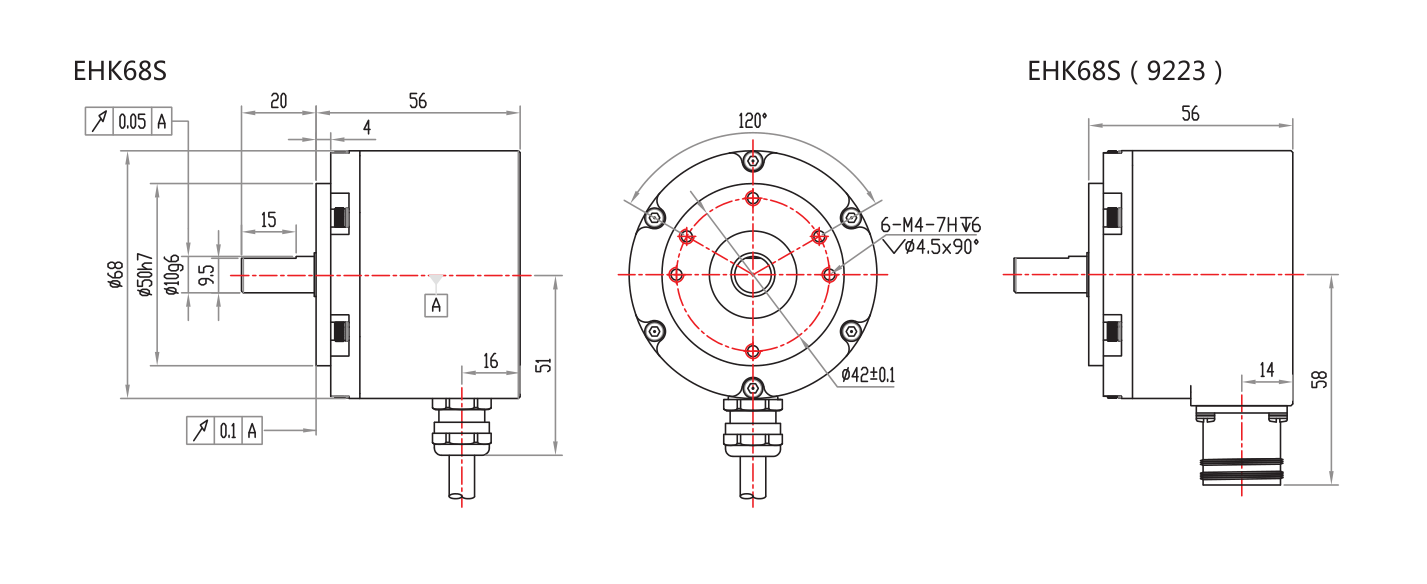

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
EHK68S series heavy-duty encoder0.00 M

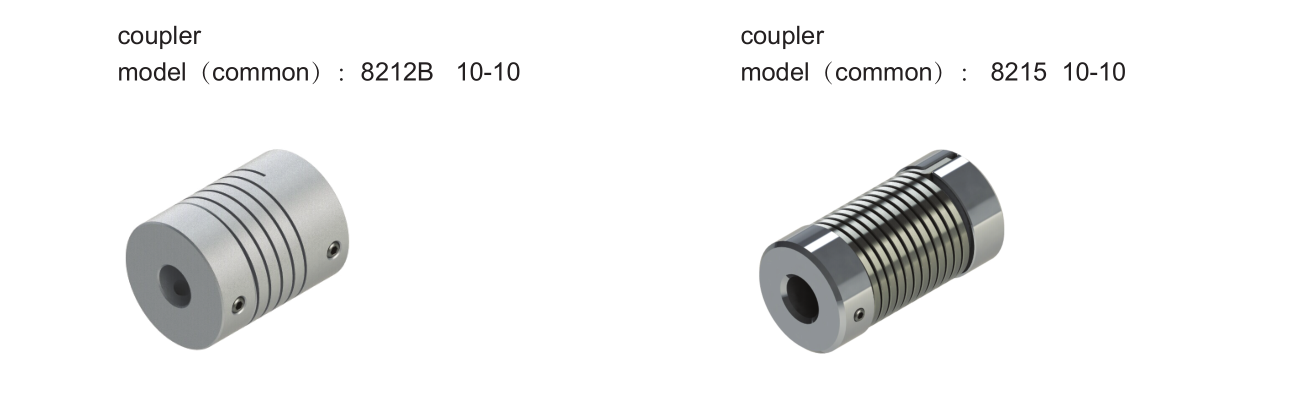

Accessories
