Heavy-duty encoder

EHK115S series

  • EHK115S series
  • Sensing method optical
  • Housing size Φ115mm
  • Solid shaft Φ10、Φ11、Φ12mm
  • Max. resolution 2048PPR
  • Supply voltage 5VDC,9-26VDC
  • Protection IP65/IP67

Technical parameter

Technical – Machine characteristics

Shaft diameterSolid shaft Φ10、Φ11、Φ12mm

ProtectionIP65/IP67

Speed6000RPM

Shaft loadingMax. 70 N Axial;Max. 140 N Radial

Shock resistance100g,3ms

Vibration resistance10g,10...2000HZ

Starting torque<0.1Nm

MaterialsMaterials Flange :Stainless steel
Solid shaft :Aluminium alloy
Housing:Aluminium alloy

Working temperature-40℃…+85℃

Storage temperature-40℃…+85℃

WeightApprox.1.2kg(2m cable)

Technical – Electrical characteristics

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 2048P/R

Supply voltage5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channelMax. ±80mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-2.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time TfMax. 1 μs

Short circuit proof outputsYes

Ordering information

Ordering example:EHK115S11C1024F9-26R2

Terminal assignment

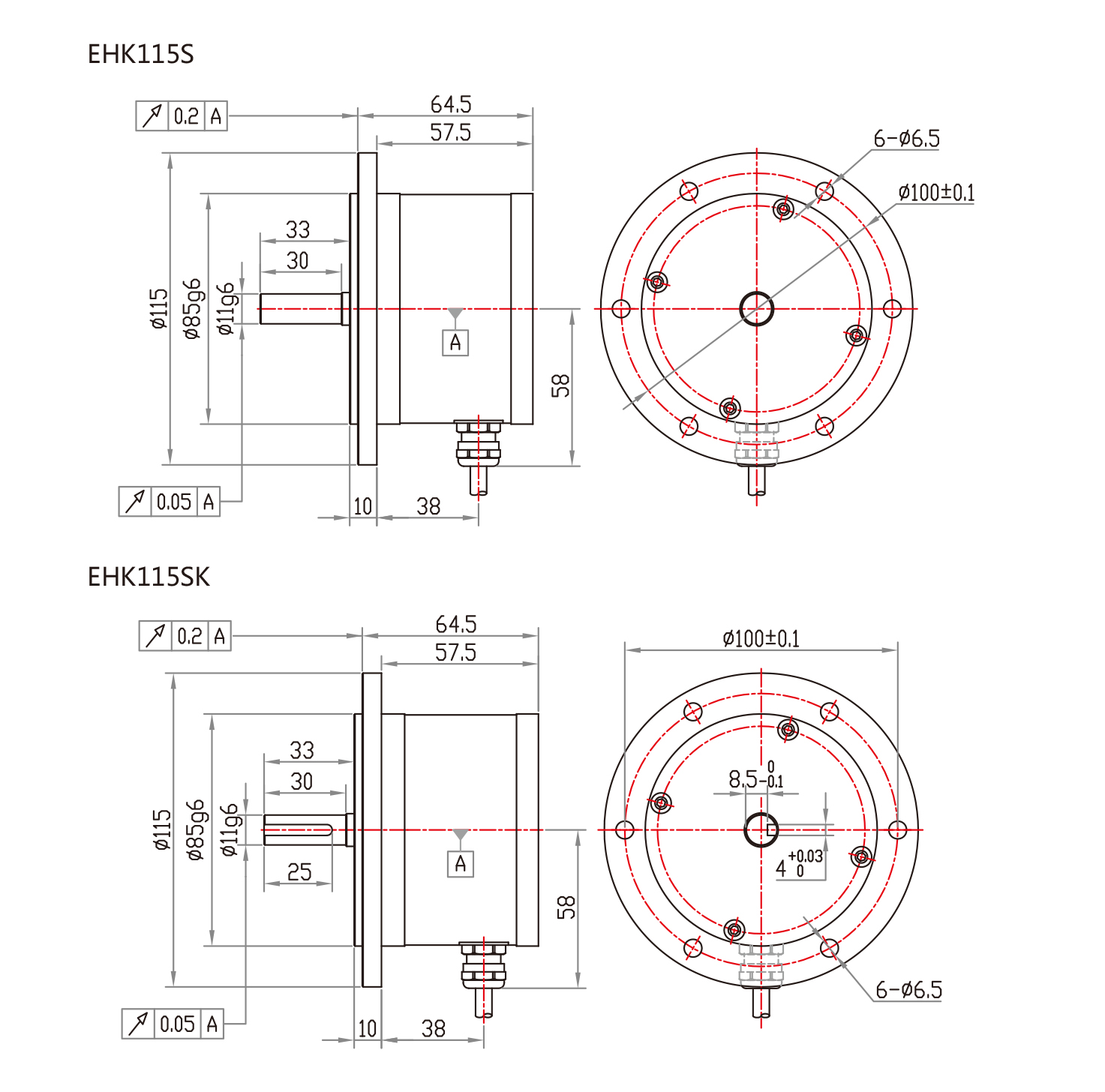

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
EHK115S series heavy-duty encoder3.46 M

Accessories
