Heavy-duty encoder

EHK105HK series

  • EHK105HK series
  • Sensing method optical
  • Housing size Φ105mm
  • Hollow keyway shaft Φ16、Φ20、Φ25mm
  • Max. resolution 2500PPR
  • Supply voltage 5VDC,5-30VDC,9-26VDC
  • Protection IP66

Technical parameter

Technical – Machine characteristics

Shaft diameterΦ16、Φ20、Φ25mm

ProtectionIP66

Speed3000RPM

Shaft loadingMax. 100 N Axial;Max. 300 N Radial

Shock resistance100g,3ms

Vibration resistance10g,10...2000HZ

Starting torque<0.2Nm

MaterialsMaterials Flange :Stainless steel
Solid shaft :Aluminium alloy
Housing:Aluminium alloy

Working temperature-40℃…+85℃

Storage temperature-40℃…+85℃

WeightApprox.2.5kg

Technical – Electrical characteristics

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 3000P/R

Supply voltage5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channelMax. ±80mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-2.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time TfMax. 1 μs

Short circuit proof outputsYes

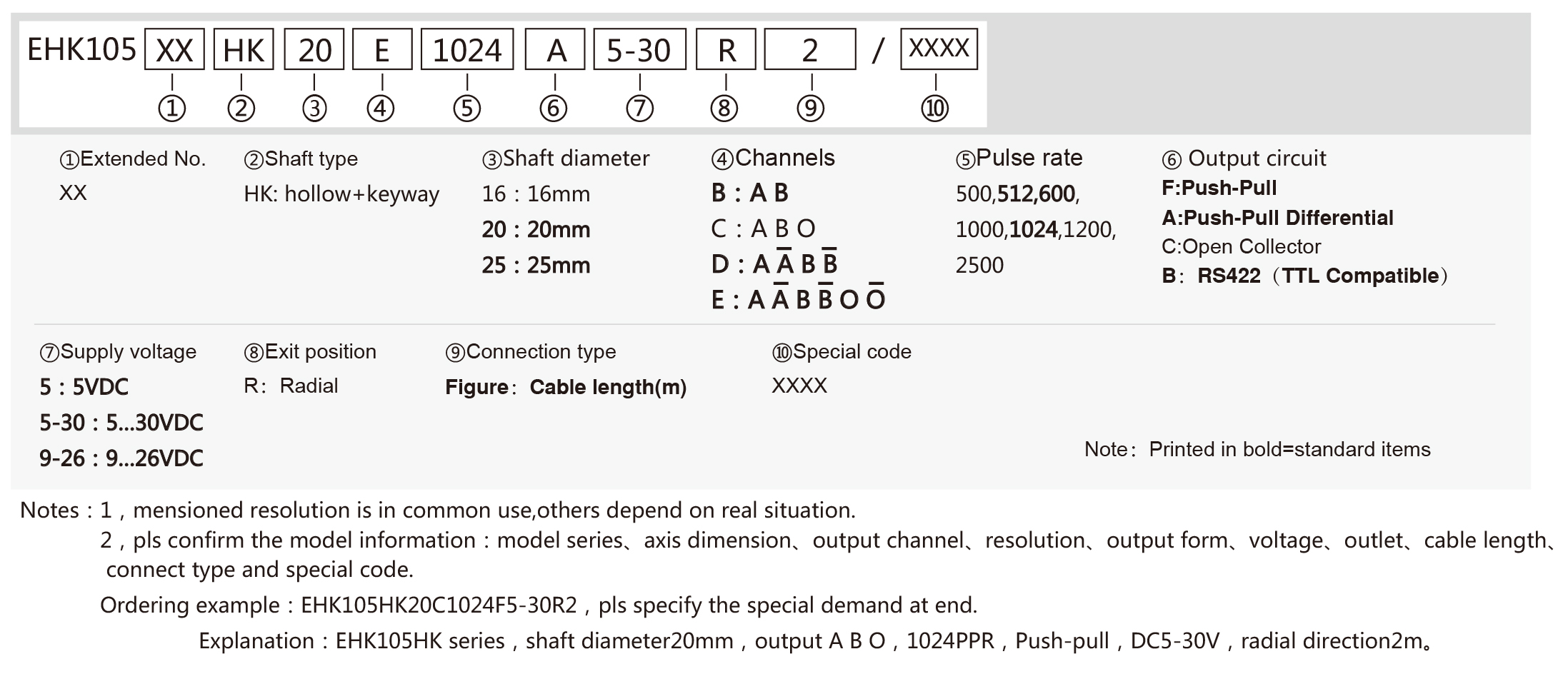

Ordering information

Ordering example:EHK105HK20C1024F5-30R2

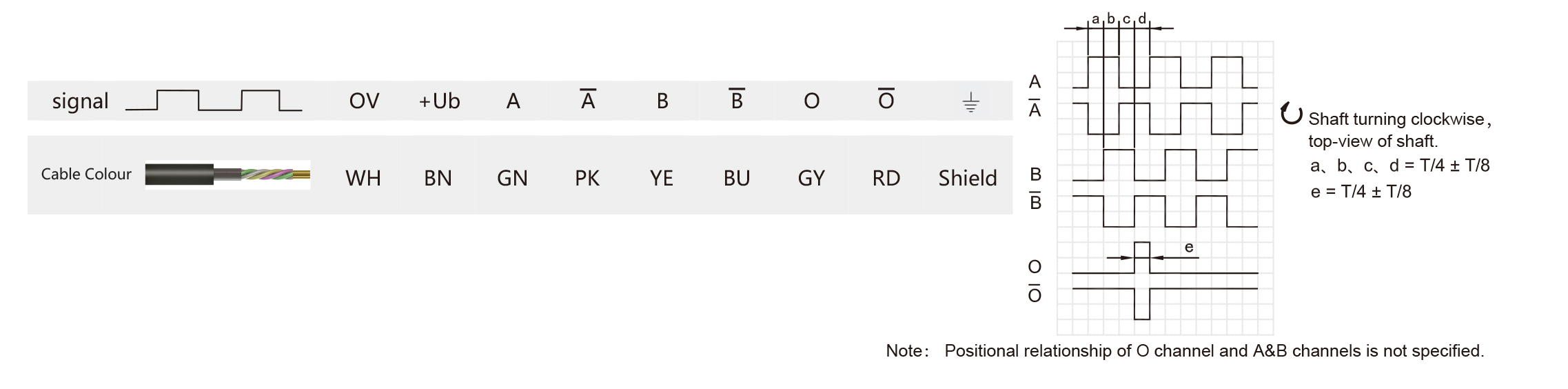

Terminal assignment

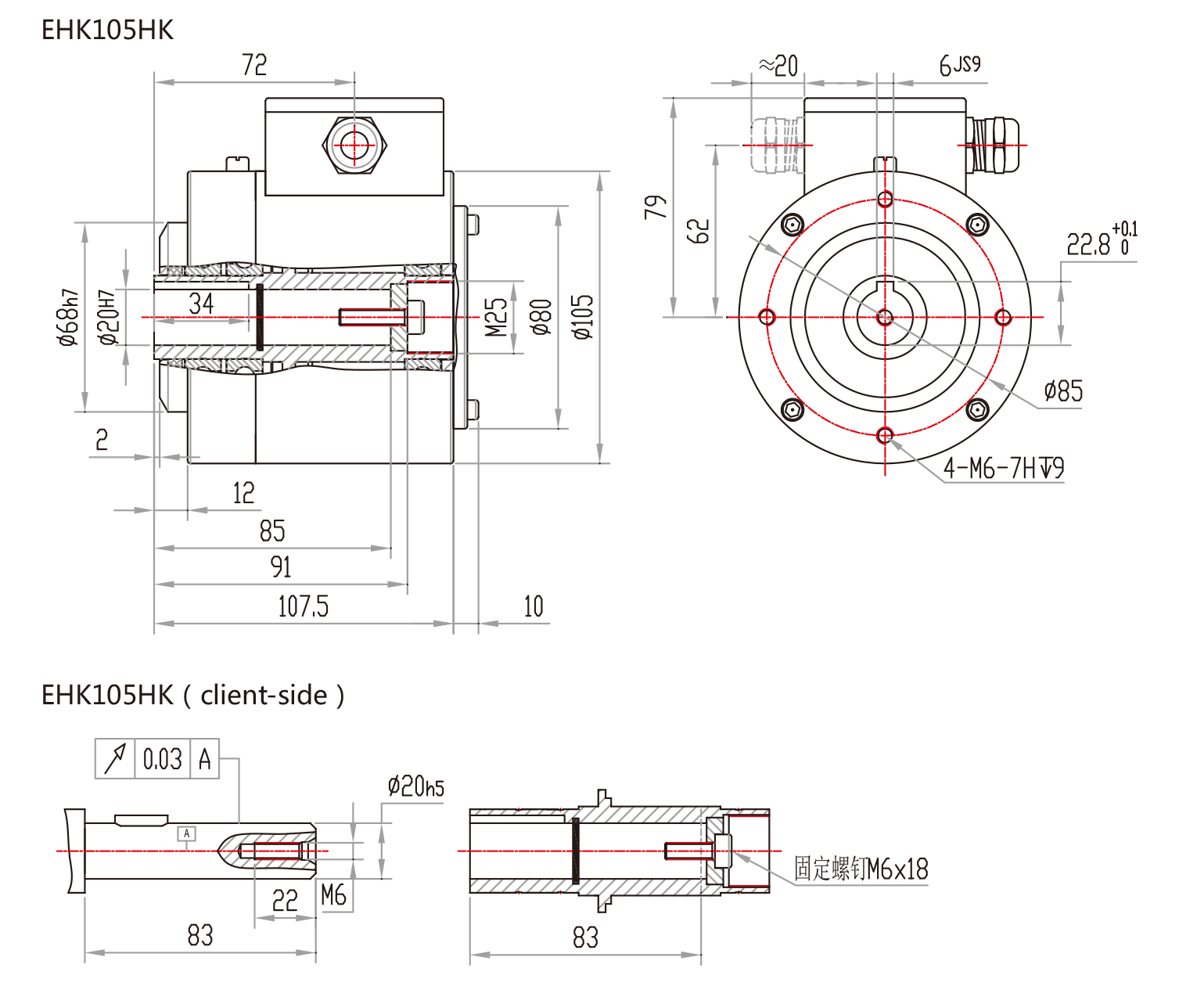

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
EHK105HK series heavy-duty encoder0.00 M

Accessories
