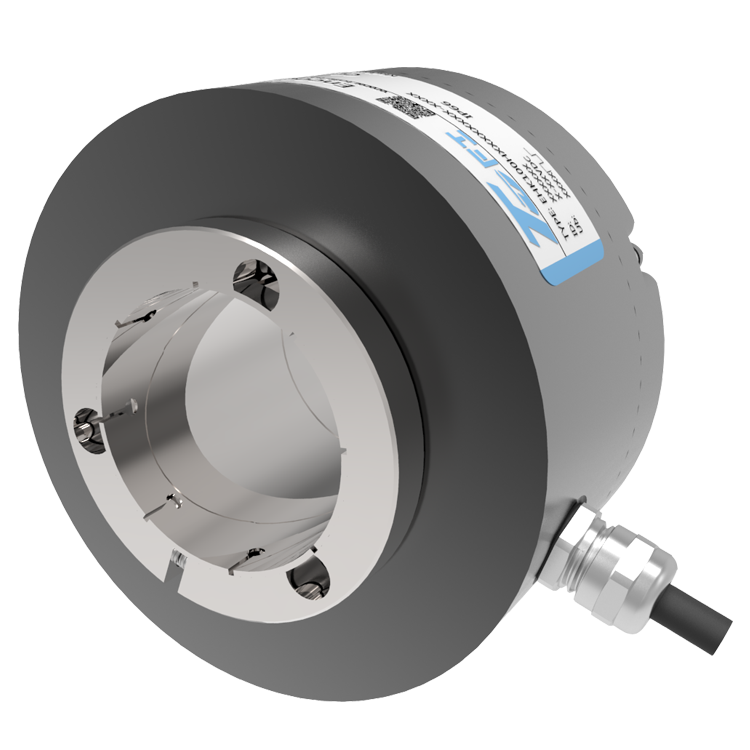

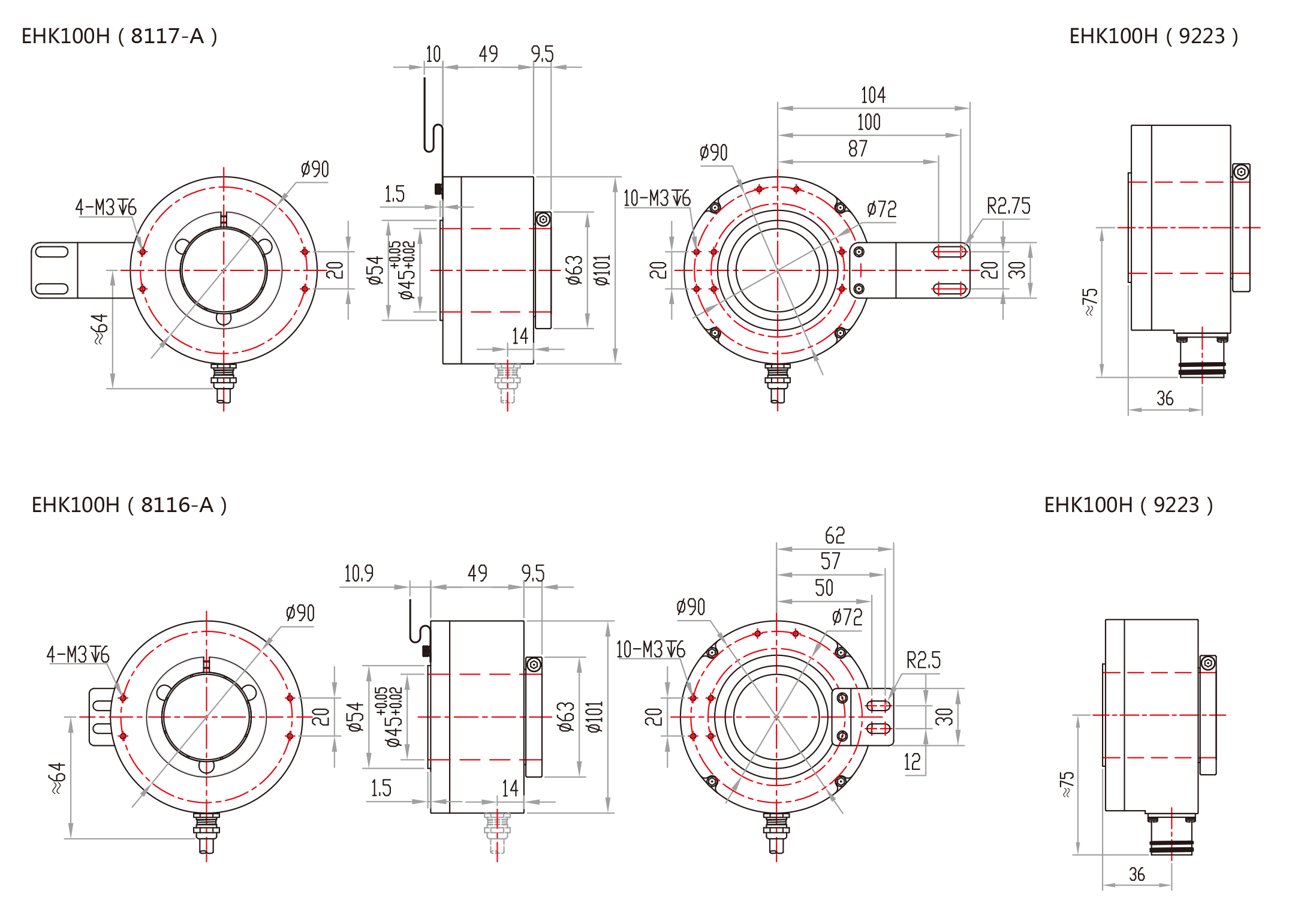

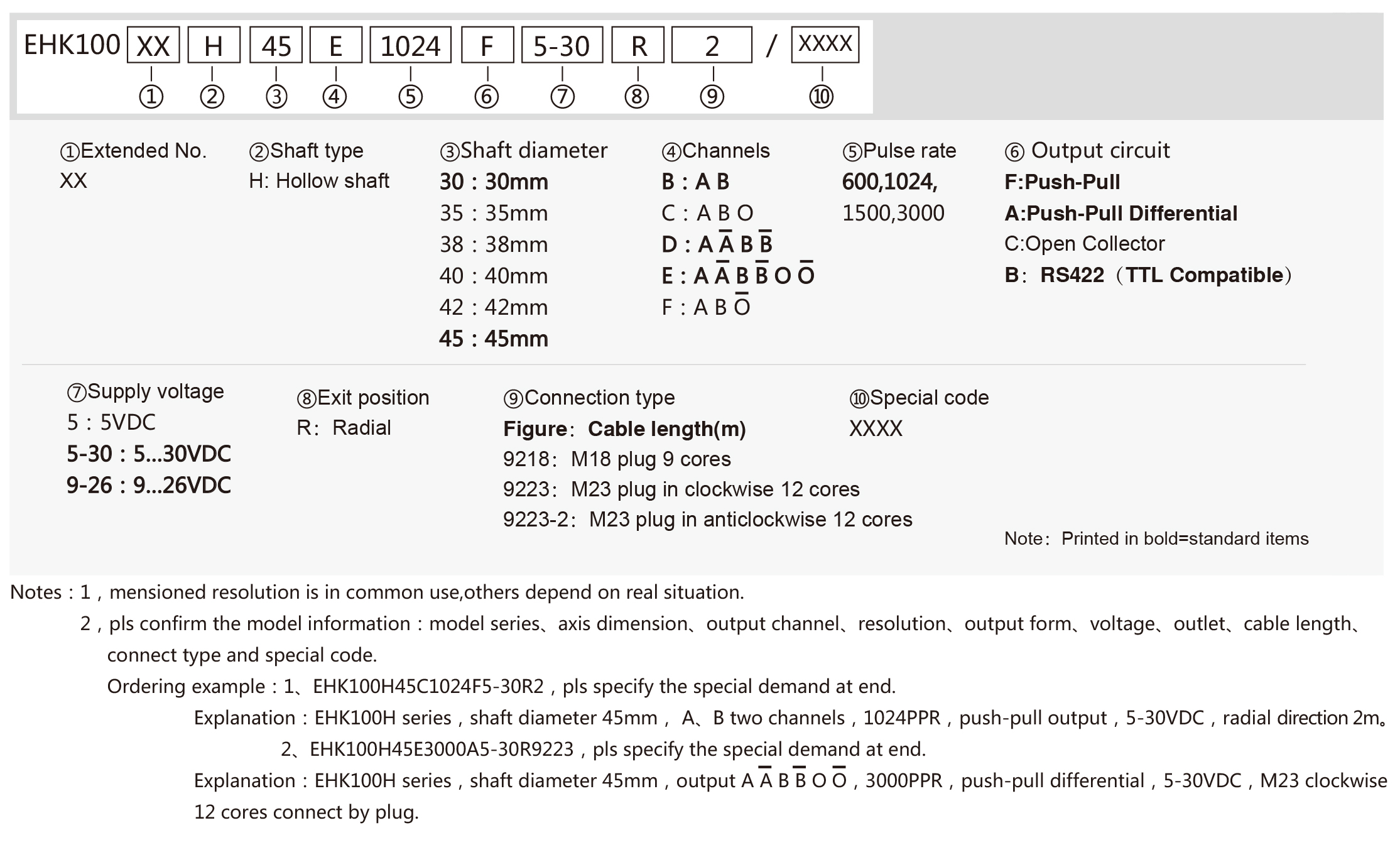

EHK100H series

Shaft diameterΦ30、Φ35、Φ38、Φ40、Φ42、Φ45mm *）

ProtectionIP66

Speed3000RPM

Shaft loadingMax. 100 N Axial；Max. 300 N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.1Nm

MaterialsMaterials Flange：Stainless steel
Solid shaft :Aluminium alloy
Housing：Aluminium alloy

Working temperature-40℃…+85℃

Storage temperature-40℃…+85℃

WeightApprox.1.2kg（2m cable）

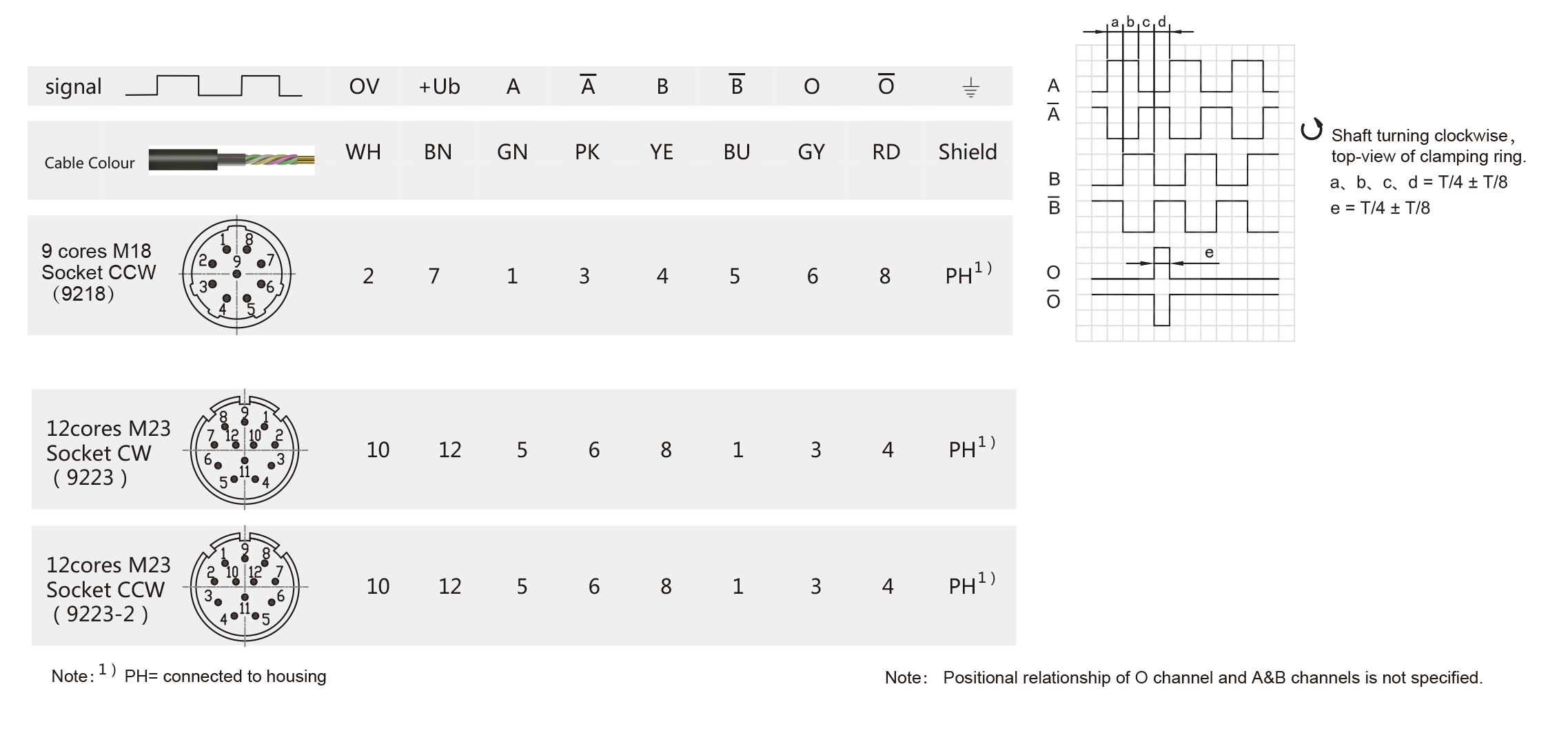

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 3000P/R

Supply voltage5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channelMax. ±80mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-2.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time TfMax. 1 μs

Short circuit proof outputsYes
