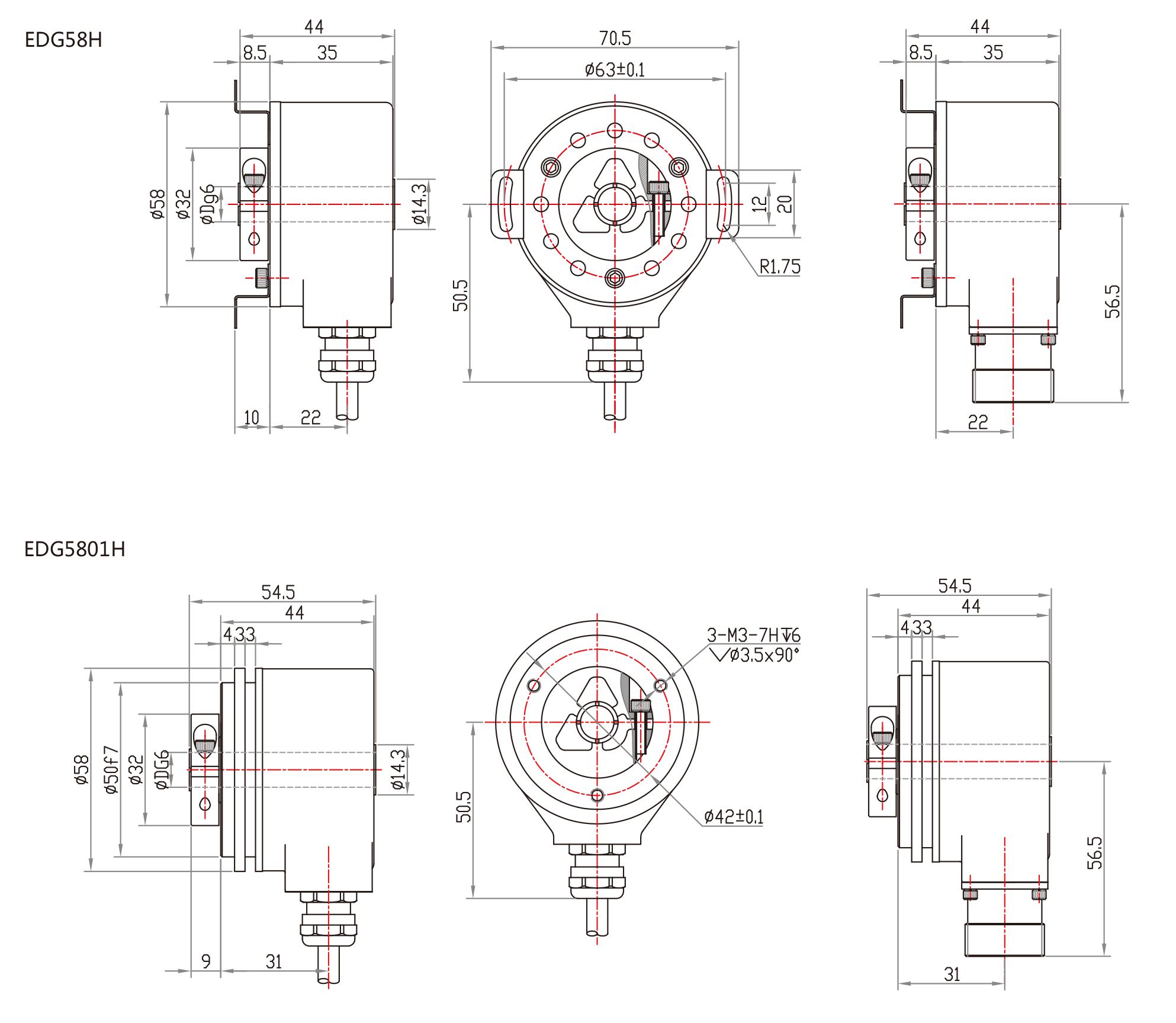

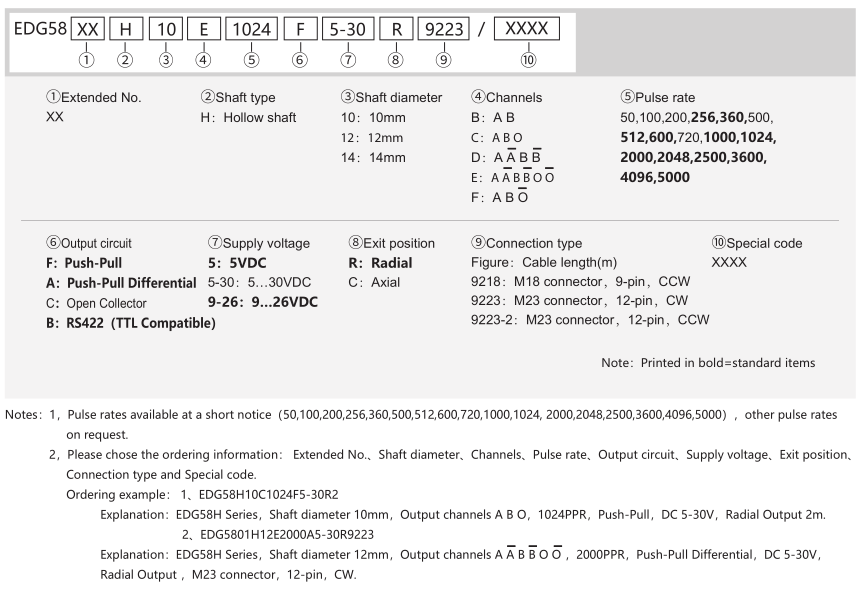

EDG58H

Shaft diameter Hollow shaft Φ10、Φ12、Φ14 mm

Sensing methodOptical

Max. resolution≤5000PPR

Supply voltage 5VDC，5-30VDC，9-26VDC

ProtectionIP65/IP67

Speed6000RPM

Shaft loadingMax. 40 N Axial；max. 80 N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.015 Nm

MaterialsSolid shaft ：Stainless steel
Flange ：Aluminum alloy
Housing ：Housing：Tensile iron shell +Black painted

Working temperature-20℃…+70℃

Storage temperature-40℃…+85℃

WeightApprox. 400g

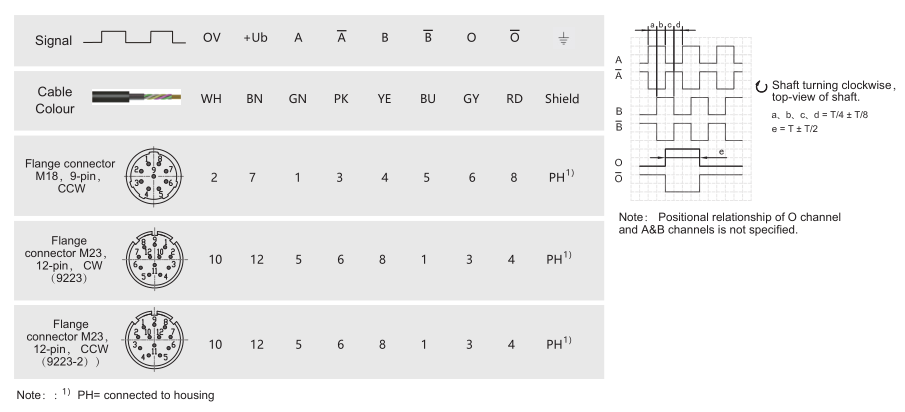

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）

Pulse rateMax. 5000 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max. ±80 mA

Pulse frequency Max. 300 KHz

Signal level high Min. Ub-1.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax. 1μs

Short circuit proof outputs Yes
