EDG5803S

Shaft diameter Solid shaft with key Φ6mm

Sensing methodOptical

Max. resolution5000 PPR

Supply voltage 5VDC，5-30VDC，9-26VDC

ProtectionIP65/IP67

Speed6000RPM

Shaft loadingMax. 40 N Axial；max. 80 N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.015 Nm

MaterialsSolid shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Aluminum alloy

Working temperature-40 ℃…+85 ℃

Storage temperature-40 ℃…+85 ℃

WeightApprox. 200g( Cable 2m)

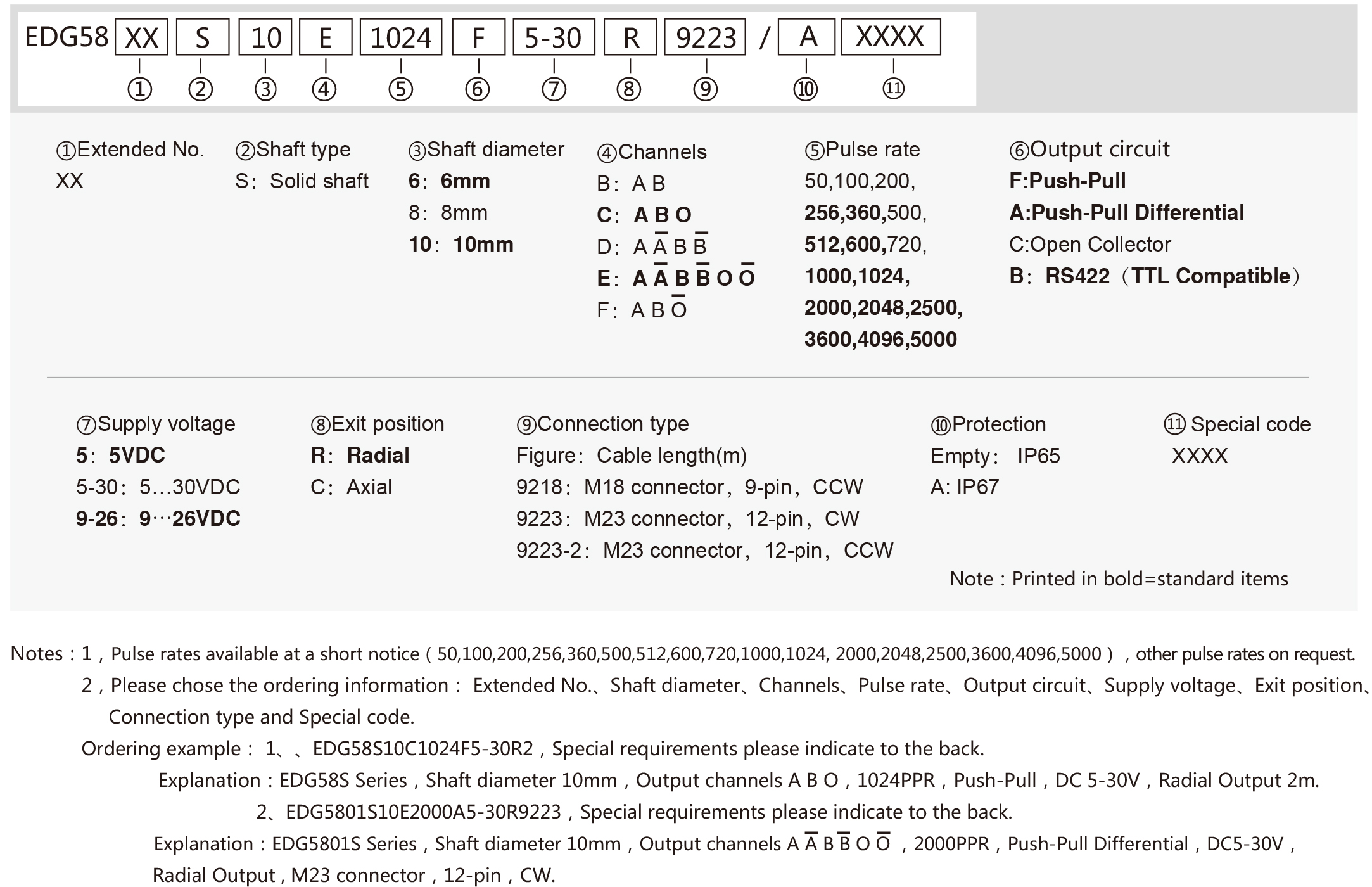

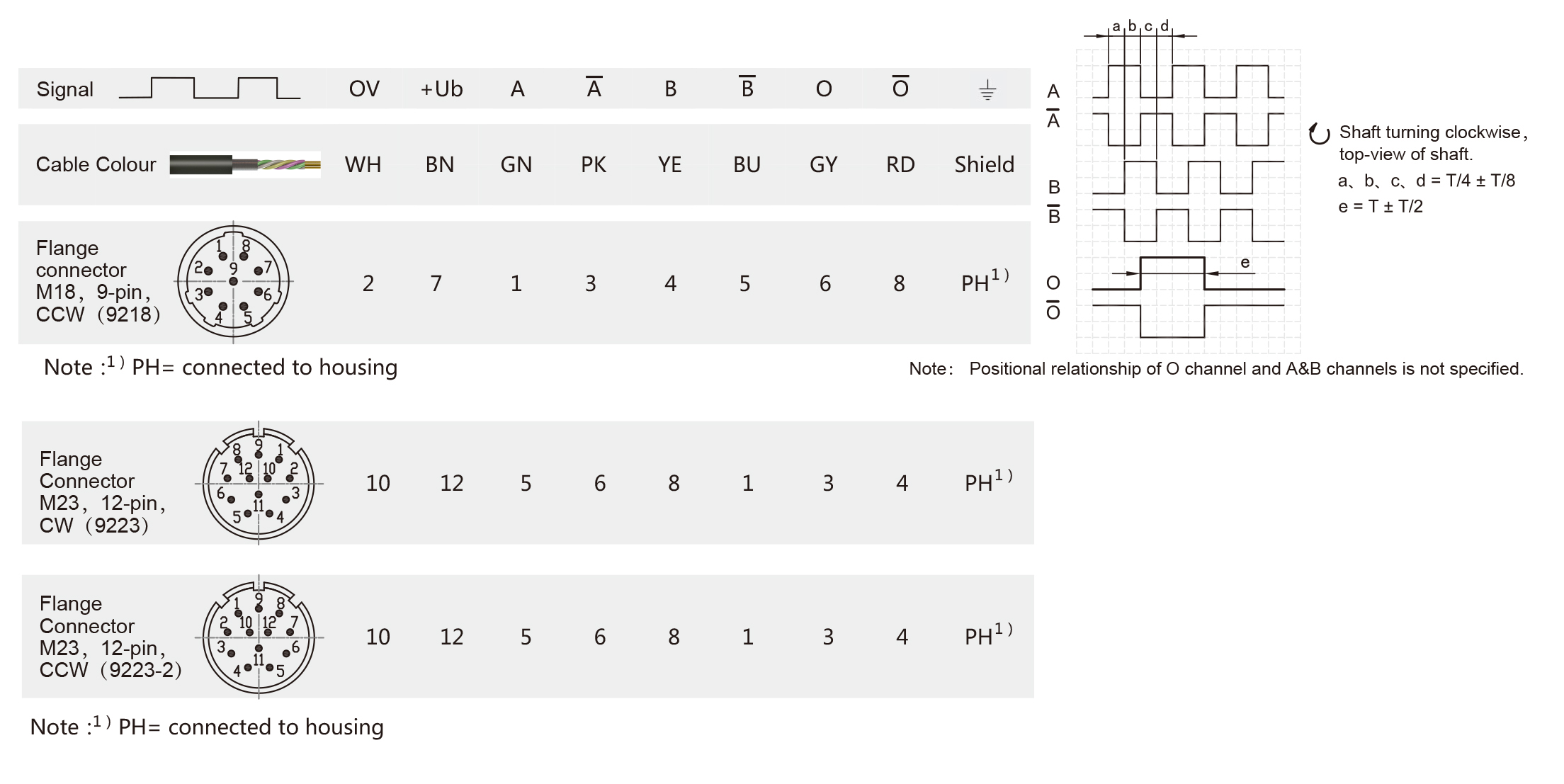

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）

Pulse rateMax. 5000 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max. ±80 mA

Pulse frequency Max. 300 KHz

Signal level high Min. Ub-1.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax. 1μs

Short circuit proof outputs Yes
